5A 3 Pin SPDT Toggle Switch (Pack of 5)
Original price was: ₹199.00.₹99.00Current price is: ₹99.00.
or 4 interest-free installments by Afterpay. More Info
Specification’s:-
| Rated Voltage (V) | 120V AC |
| Rated Current(A) | 5 |
| Contact Resistance | 100mΩ (Max.) |
| Insulation Resistance (MΩ) | 1000 |
| Mech. & Electrical Lifecycle | ≈ 100,000 |
| Operating Temperature Range (°C) | -30 to 85 |
| Switch Type | SPDT |
| Length (mm) | 13 |
| Width (mm) | 7 |
| Height (mm) | 10 |
| Weight (gm) | 4 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 4 × 7 × 1 cm |
Guaranteed safe checkout
Monday - Friday 9:00 - 17:00
Description
Description

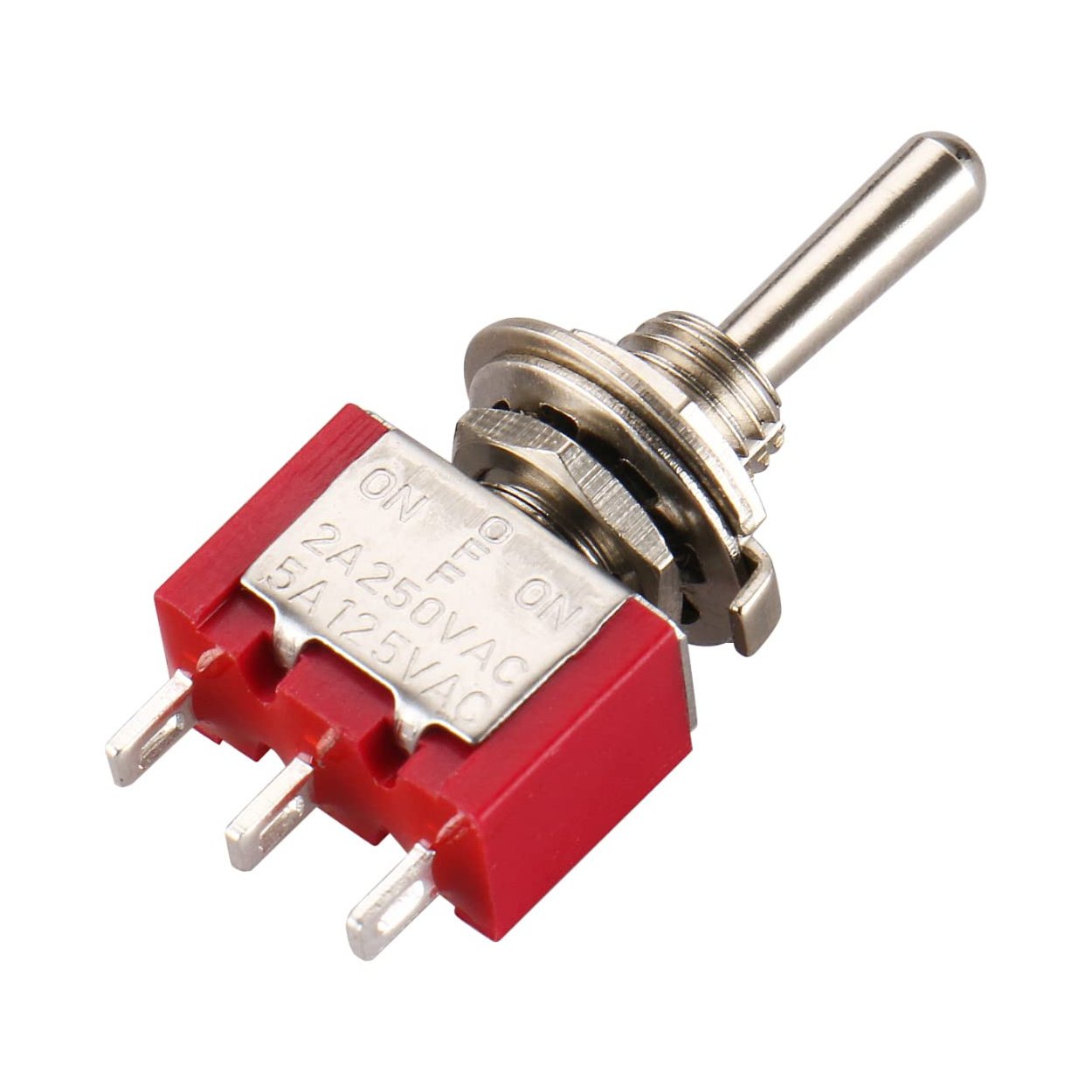

This heavy-duty single-pole, double-throw (SPDT) toggle switch makes a great power switch or state selector for user interfaces. The switch handle can be switched to 3 states – ON-OFF-ON. It is rated for 2 A at 250 VAC and 5 A at 125 VAC. We have carefully selected the best switch from numerous manufacturers which offer the best noise-free operation, good load switching, and long operation cycles.

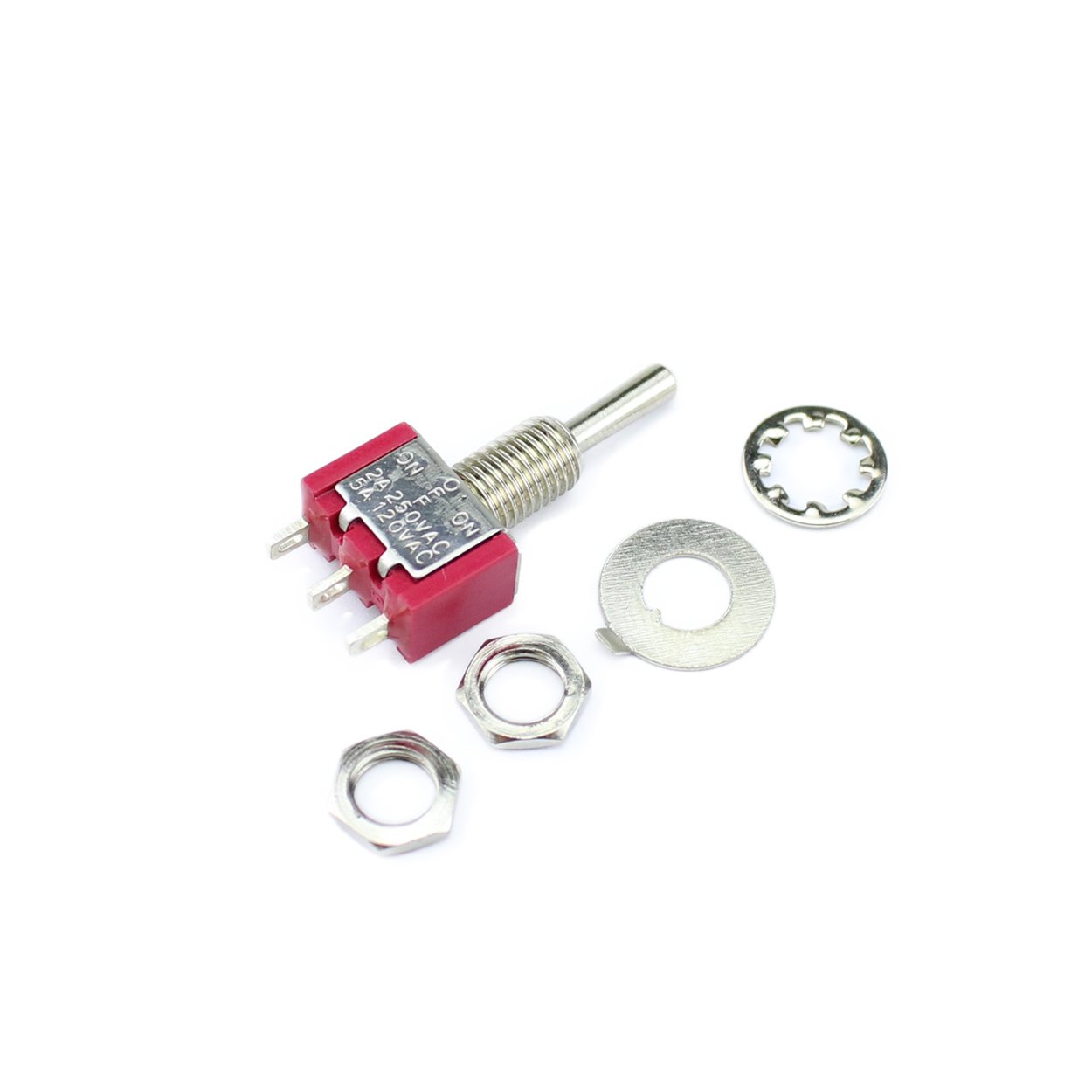

The front part of the switch has a screw and can be easily mounted to an enclosure using a nut. The switch comes with a washer and a nut for easy mounting to enclosures.
Specifications:
- No of Positions: 3 – ON-OFF-ON
- Switch Type: 3 Pin SPDT
- Maximum Voltage: 250V
- Maximum Current: Rated for 3 A at 250 VAC and 6 A at 125 VAC
- Durable in use
- It can be used on low voltage or high voltage circuits
- Ideal for switching lights or motors
- Applications include telecommunications, instrumentation, networking and medical equipment
Package Includes:
5 x 5A 3 Pin SPDT Toggle Switch. ( SPDT, ON-OFF-ON, 3Pin) with Mounting Nuts
