Waveshare 240×135, General 1.14inch LCD Display Module, IPS, 65K RGB
Original price was: ₹1,000.00.₹699.00Current price is: ₹699.00.
or 4 interest-free installments by Afterpay. More Info
Specifications:-
- Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
- Interface: SPI
- LCD type: IPS
- Controller: ST7789
- Resolution: 135(H)RGB x 240(V)
- Display area: 14.864（H）x 24.912（V）mm
- Pixel size: 0.1101（H）x 0.1035（V）mm
- Dimension: 35(H) x 32(V) mm
Guaranteed safe checkout
Free Delivery 30 Day Trial Free Returns
Need Help? Call Us +1 255 854 55 26
Monday - Friday 9:00 - 17:00
Monday - Friday 9:00 - 17:00
Description
Description

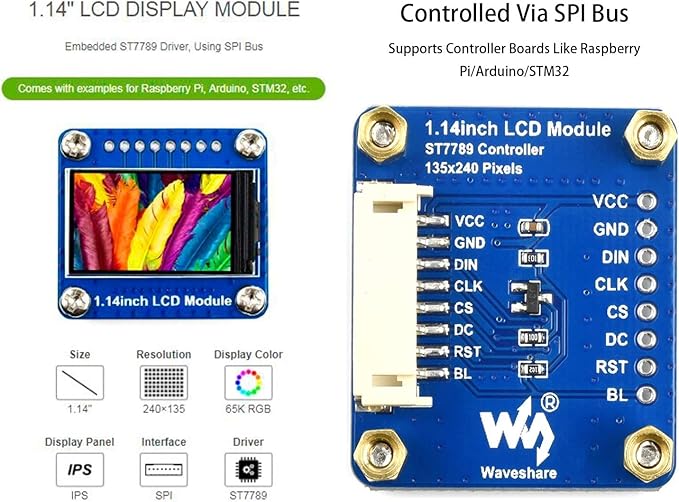

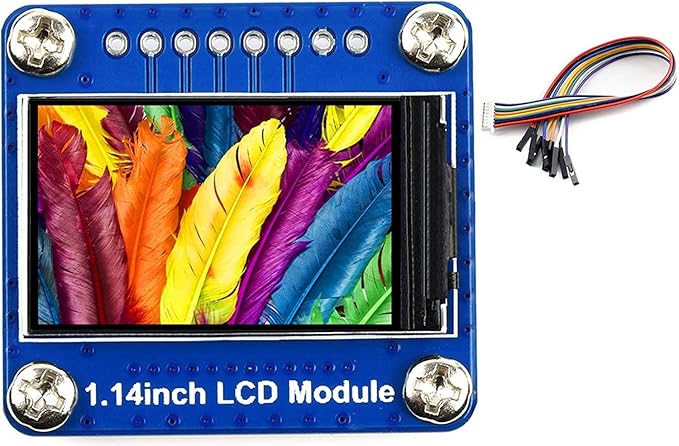

This is a general LCD display Module, IPS screen, 1.14inch diagonal, 240×135 HD resolution, with embedded controller, communicating via SPI interface.
Features:
- 240×135 resolution, 65K RGB colors, clear and colorful displaying effect

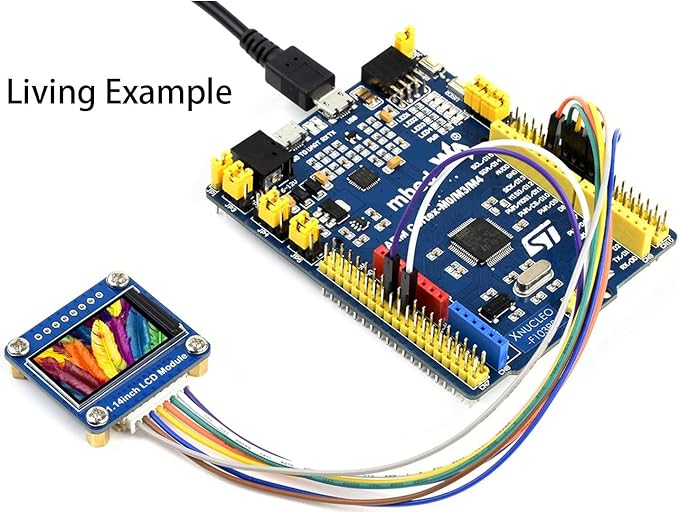

- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

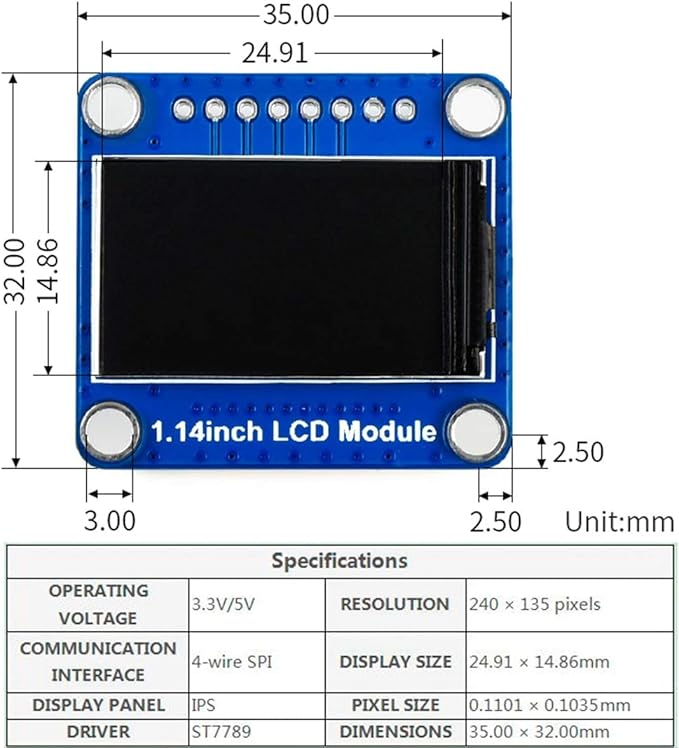

Specifications:
- Operating voltage: 3.3V / 5V
- Interface: 3-wire SPI, 4-wire SPI
- Display Panel: IPS
- Driver: ST7789
- Resolution: 240 × 135 pixels
- Display Size: 24.91 × 14.86mm
- Pixel Size: 0.1101 × 0.1035mm
- Dimensions: 35.00 × 32.00mm

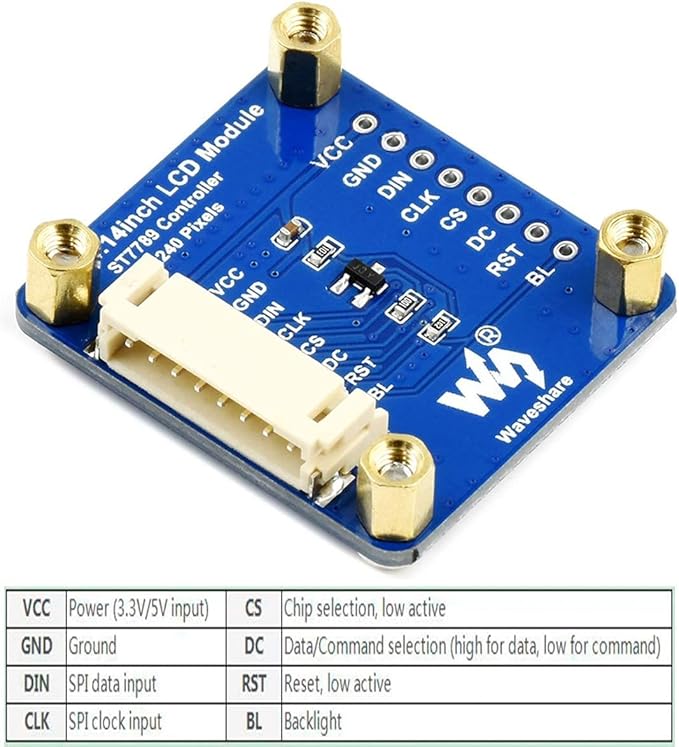

Interface
- VCC – 3.3V / 5V power input
- GND – Ground
- DIN – SPI MOSI pin
- CLK – SPI SCK pin
- CS – SPI chip selection, low active
- DC – Data/Command selection (high for data, low for command)
- RST – External reset, low active
- BL – Backlight
