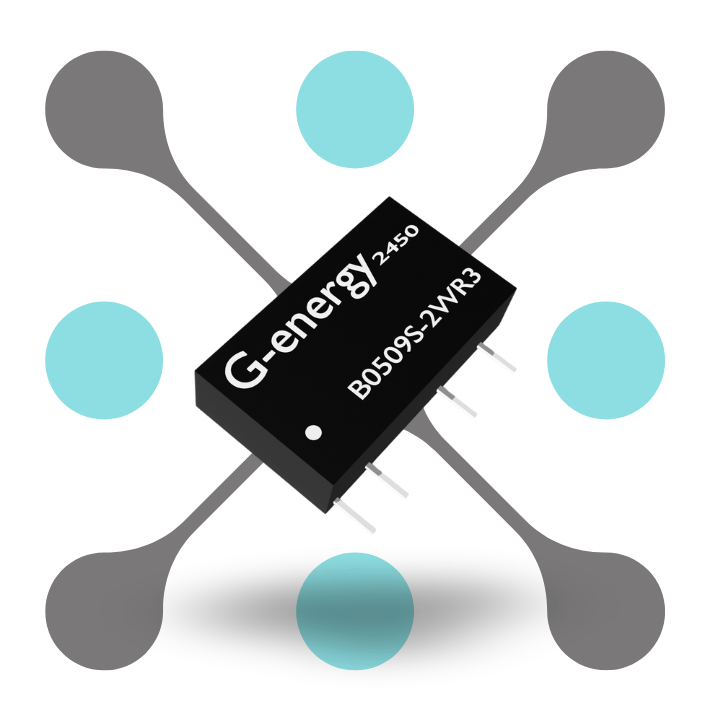

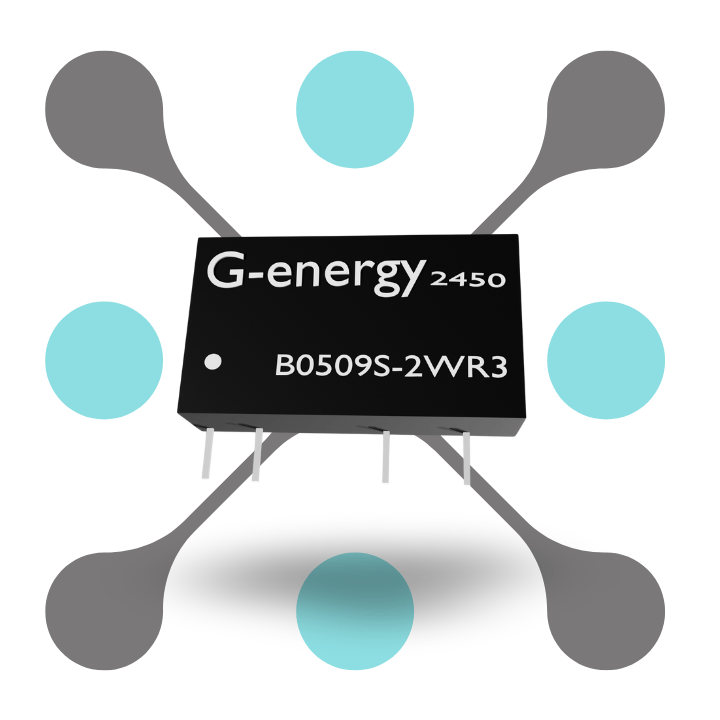

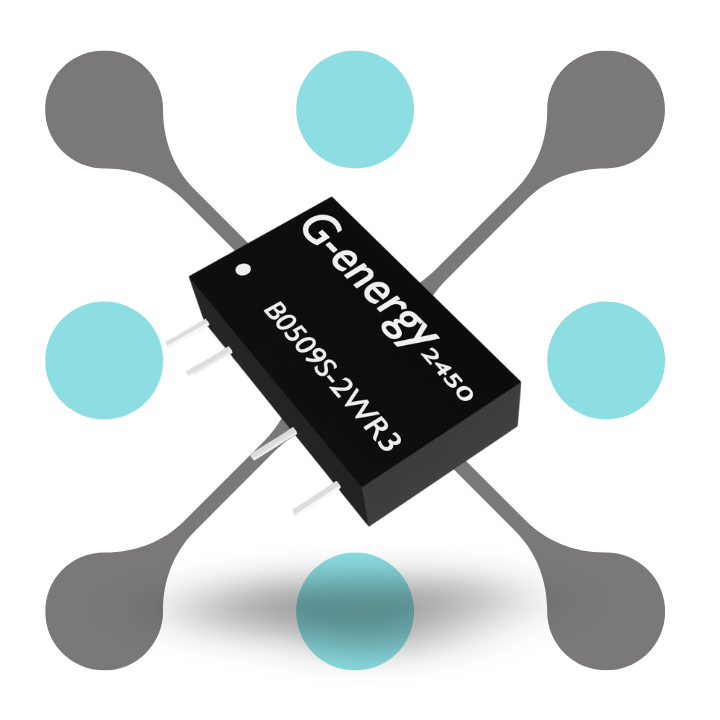

G-energy B0509S-2WR3 5V to 9V 222mA 2W Dc Dc Converter Isolated Module
Original price was: ₹119.00.₹99.00Current price is: ₹99.00.
or 4 interest-free installments by Afterpay. More Info
Specification
| Specification | Details |
|---|---|
| Input Voltage | 5V DC |
| Output Voltage | 9V DC |
| Output Current | 222mA |
| Output Power | 2W |
| Isolation Voltage | 1500V DC |
| Efficiency | Up to 85% |
| Input-Output Isolation | Fully Isolated |
| Ripple & Noise | ≤100mV |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Package Type | SIP |
| Short Circuit Protection | Continuous |
| Load Regulation | ±1.5% |
| Line Regulation | ±1.2% |
| Dimensions | 19.7 x 6 x 10.2 mm |
| Weight | 2g |
| SKU | RW-DC157 |
Guaranteed safe checkout
Monday - Friday 9:00 - 17:00
Description
Description
Overview of this g-energy B0509S-2WR3 5v to 9v 222ma 2w dc dc converter
Introducing G-energy B0509S-2WR3 5V to 9V 222mA 2W DC DC Converter at best price in India. This B0509S-2WR3 isolated DC DC converter ensure a stable 9V output from a 5V input. With a 2W power rating, this 5V to 9V 222mA 2W DC DC Converter is ideal to power low power device and circuit. Its isolated design enhances safety and minimizes electromagnetic interference for sensitive applications.
The B0509S-2WR3 DC DC boost converter is designed for industrial, automotive, and communication systems. It features low ripple and noise, delivering clean and consistent power output. This B0509S-2WR3 isolated DC DC converter operates efficiently, even in demanding environments, with minimal heat generation. Choose this versatile power module for dependable and stable voltage conversion in compact and critical systems.
Features
- Efficient Voltage Step-Up Conversion: This B0509S-2WR3 5v to 9v 222mA 2w dc dc converter convert 5v dc input to 9v dc output with a 2W power rating for stable and reliable performance for applications need an increased voltage level.
- Moderate Current Output: Delivers up to 222mA output current, meeting the needs of low-power devices. Provides consistent performance for powering medium-demand electronic circuits and systems.
- 1kV DC Isolation for Circuit Protection: This B0509S-2WR3 dc dc boost converter offers 1500V DC isolation to protect sensitive device from electrical noise and surge.
- Wide Operating Temperature Range: It smoothly operate in temperatures from -40°C to +85°C which make it perfect for harsh condition.
- Compact and Durable Design: Its small, lightweight module with robust built for long last performance. It fit easily into less space design without loosing functions or reliability.
Datasheet
G-energy B0509S-2WR3 dc dc converter datasheet
Related Module
| Input Voltage | Output Voltage | Output Power | Model Name |
|---|---|---|---|
| 5V DC | 5V DC | 1W | B0505S-1WR3 |
| 5V DC | 5V DC | 1W | B0505S-1WR2 |
| 5V DC | 12V DC | 1W | B0512S-1WR3 |
| 12V DC | 5V DC | 1W | B1205S-1WR3 |
| 12V DC | 3V DC | 1W | B1203S-1WR3 |
| 12V DC | 12V DC | 1W | B1212S-1WR3 |
| 24V DC | 3V DC | 1W | B2403S-1WR3 |
| 24V DC | 5V DC | 1W | B2405S-1WR3 |
| 24V DC | 12V DC | 1W | B2412S-1WR3 |
| 5V DC | 5V DC | 1W | F0505S-1WR3 |
| 5V DC | 12V DC | 1W | F0512S-1WR3 |
| 5V DC | 3V DC | 2W | B0503S-2WR3 |
| 5V DC | 5V DC | 2W | B0505S-2WR3 |
| 5V DC | 9V DC | 2W | B0509S-2WR3 |
| 5V DC | 12V DC | 2W | B0512S-2WR3 |
| 5V DC | 15V DC | 2W | B0515S-2WR3 |
| 5V DC | 24V DC | 2W | B0524S-2WR3 |
