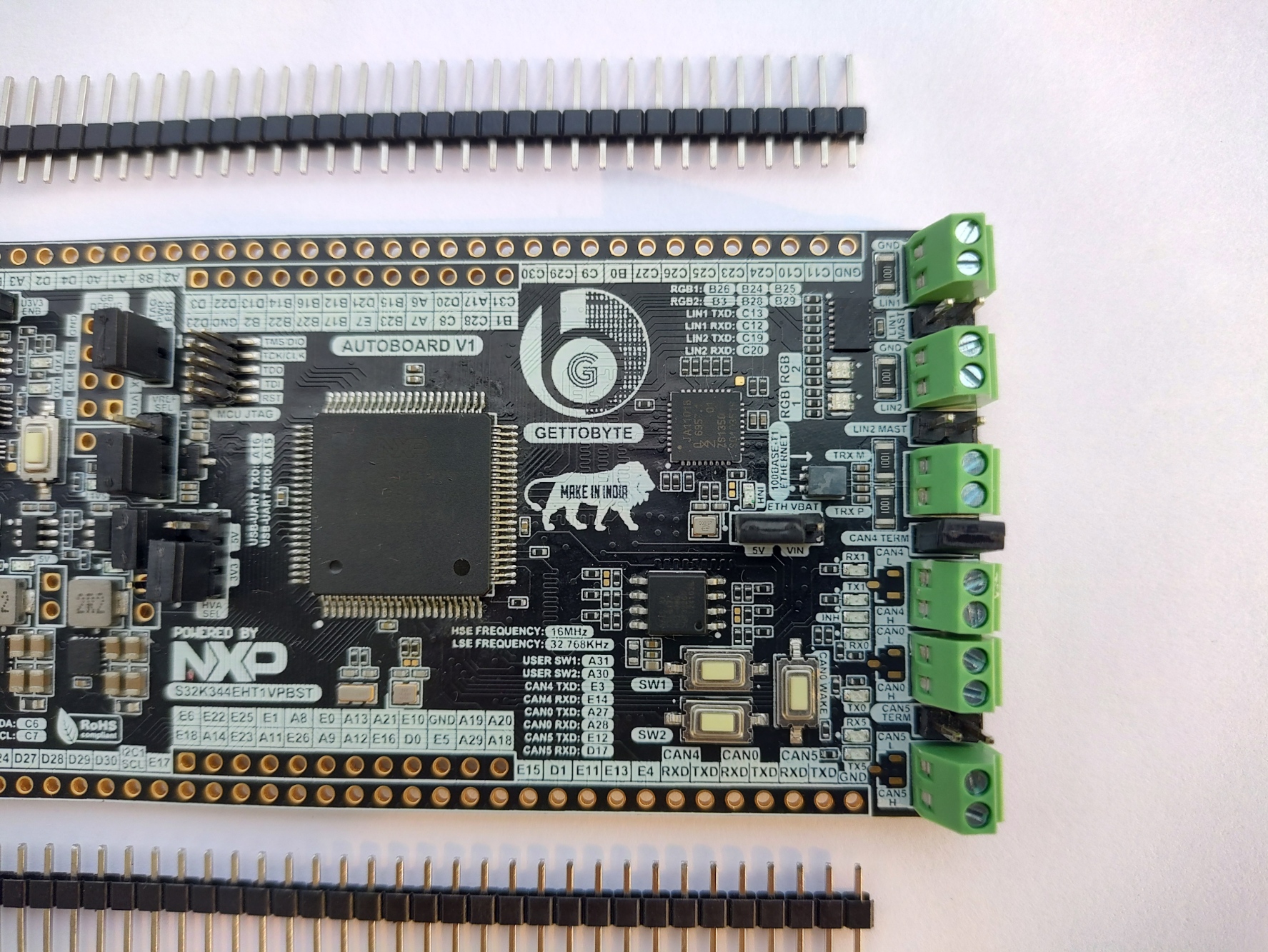

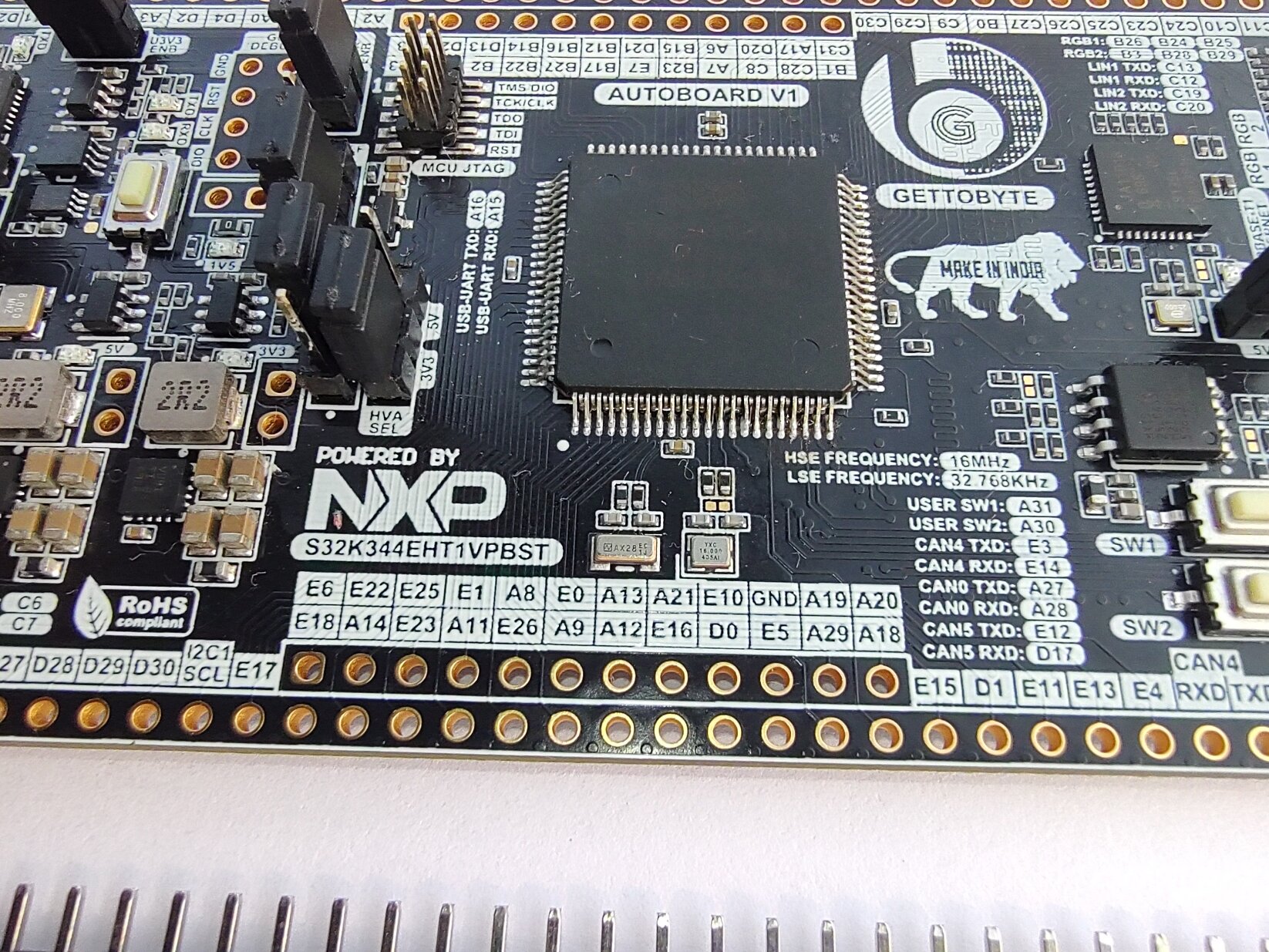

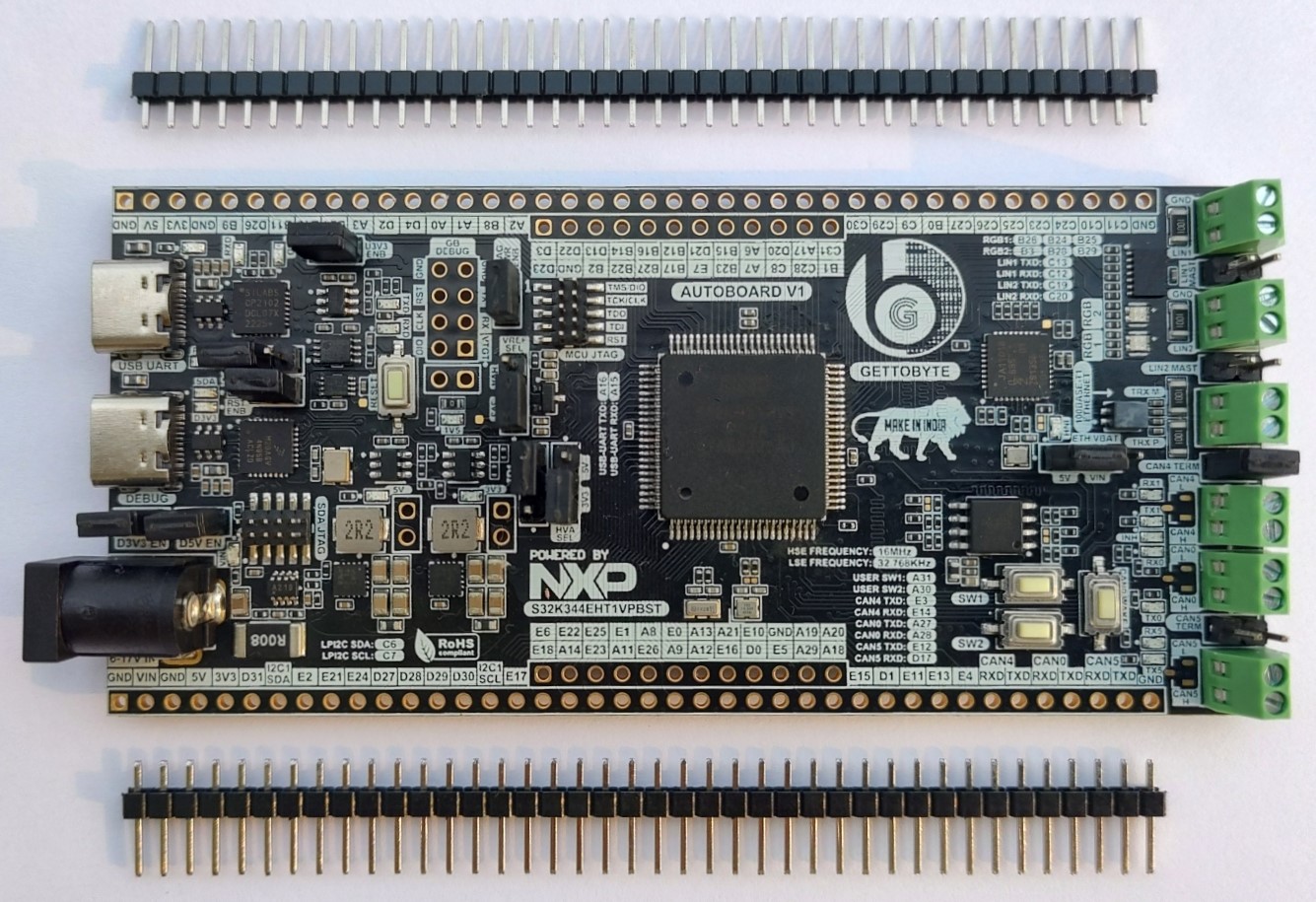

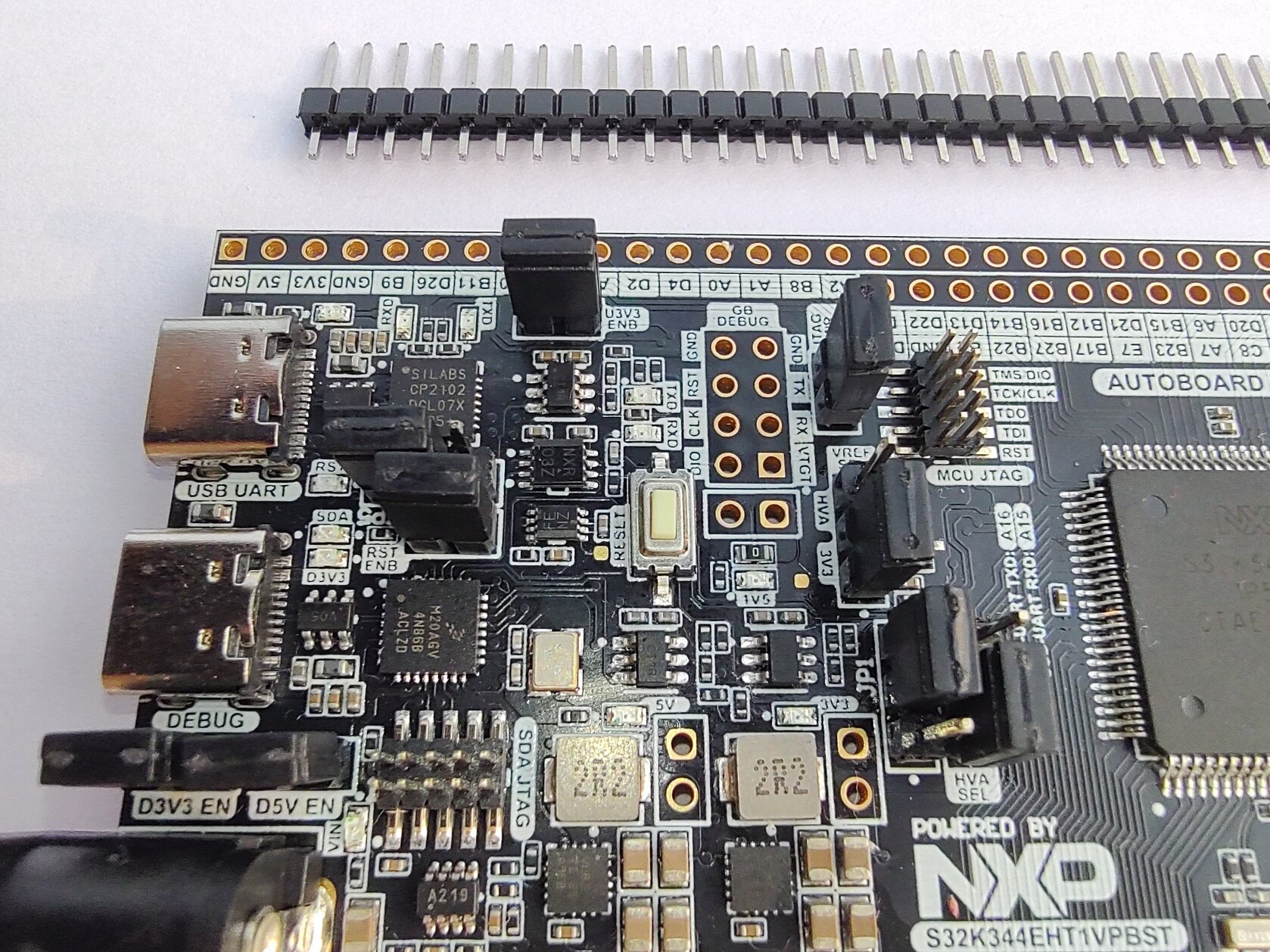

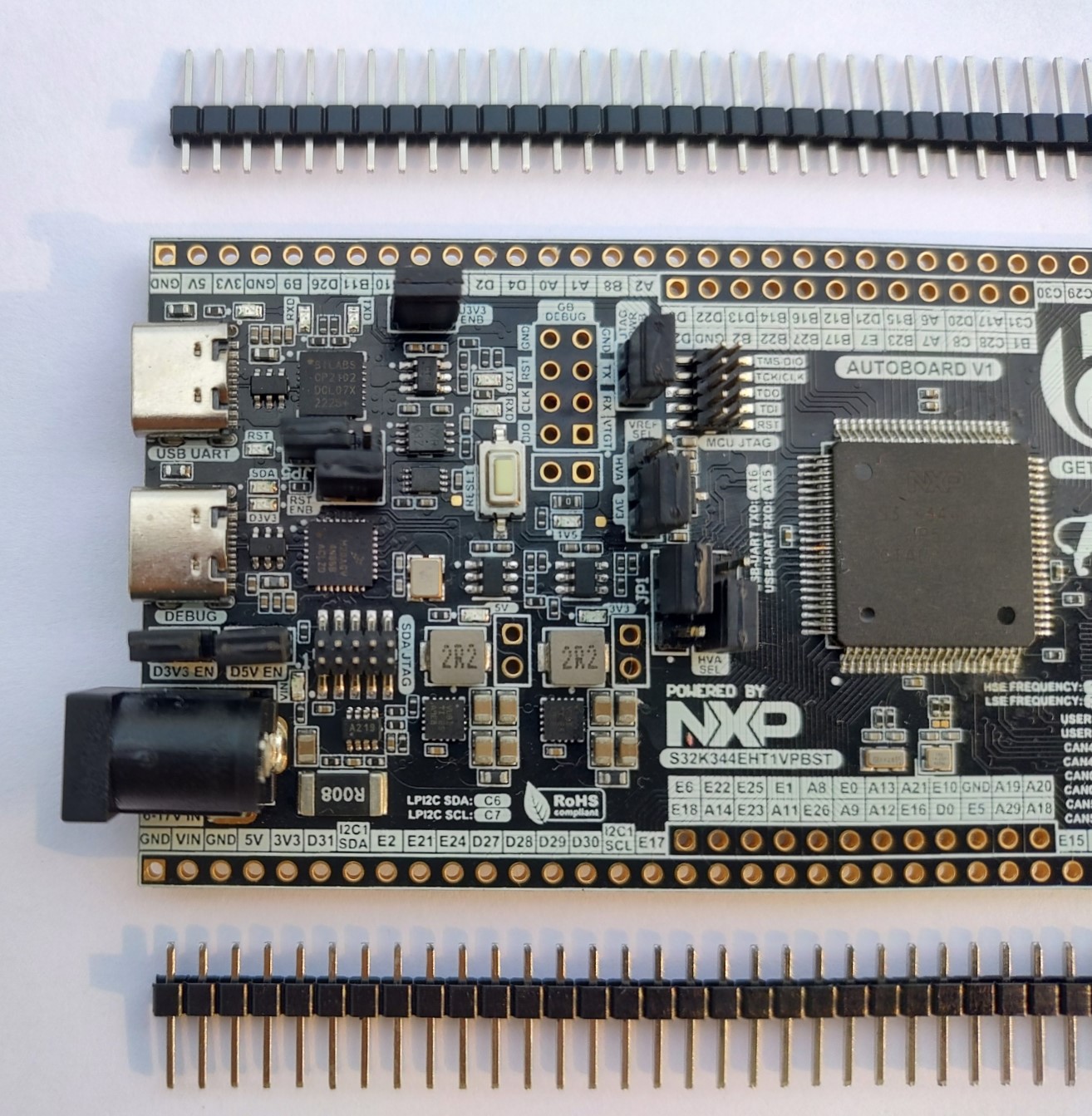

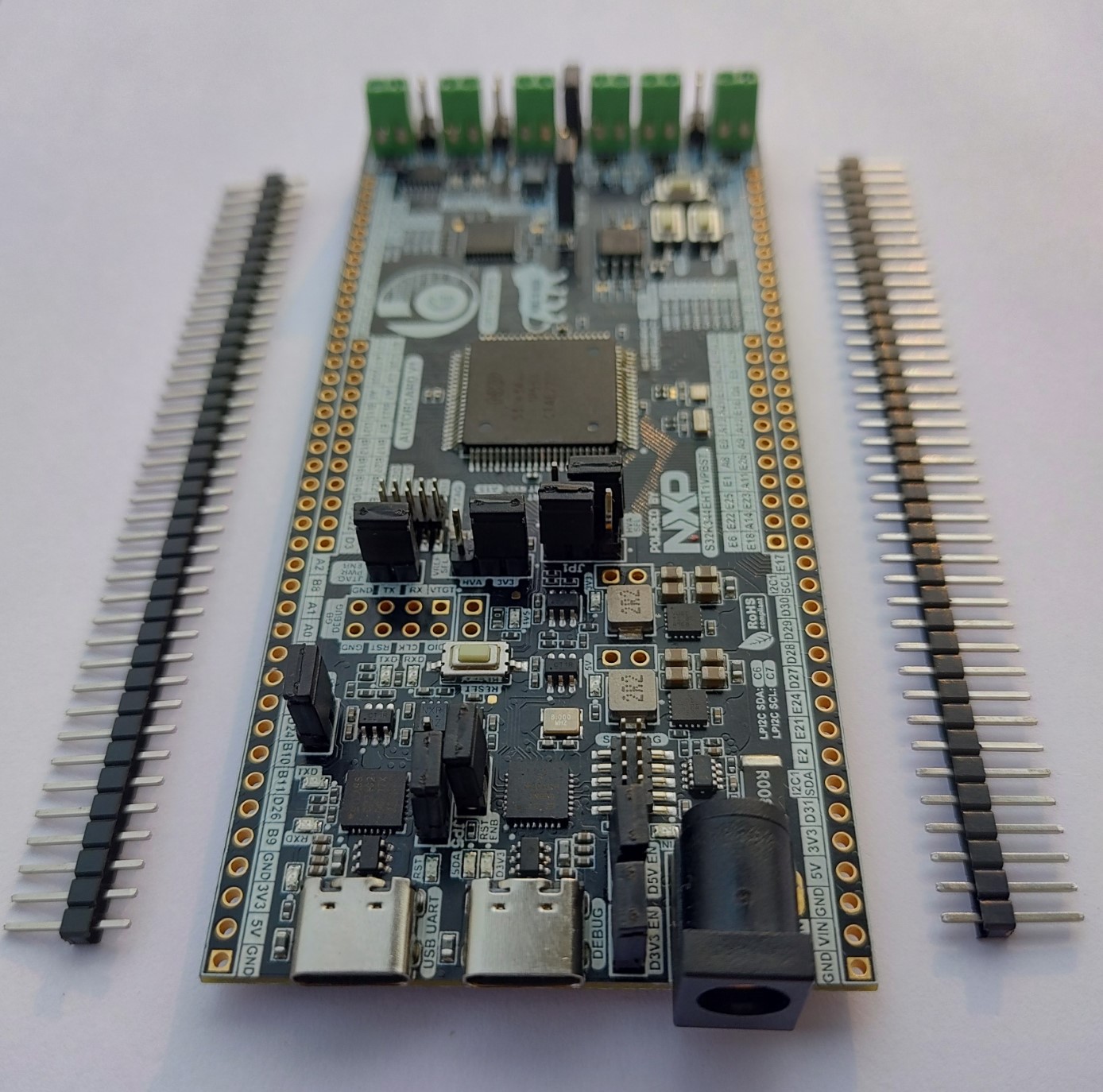

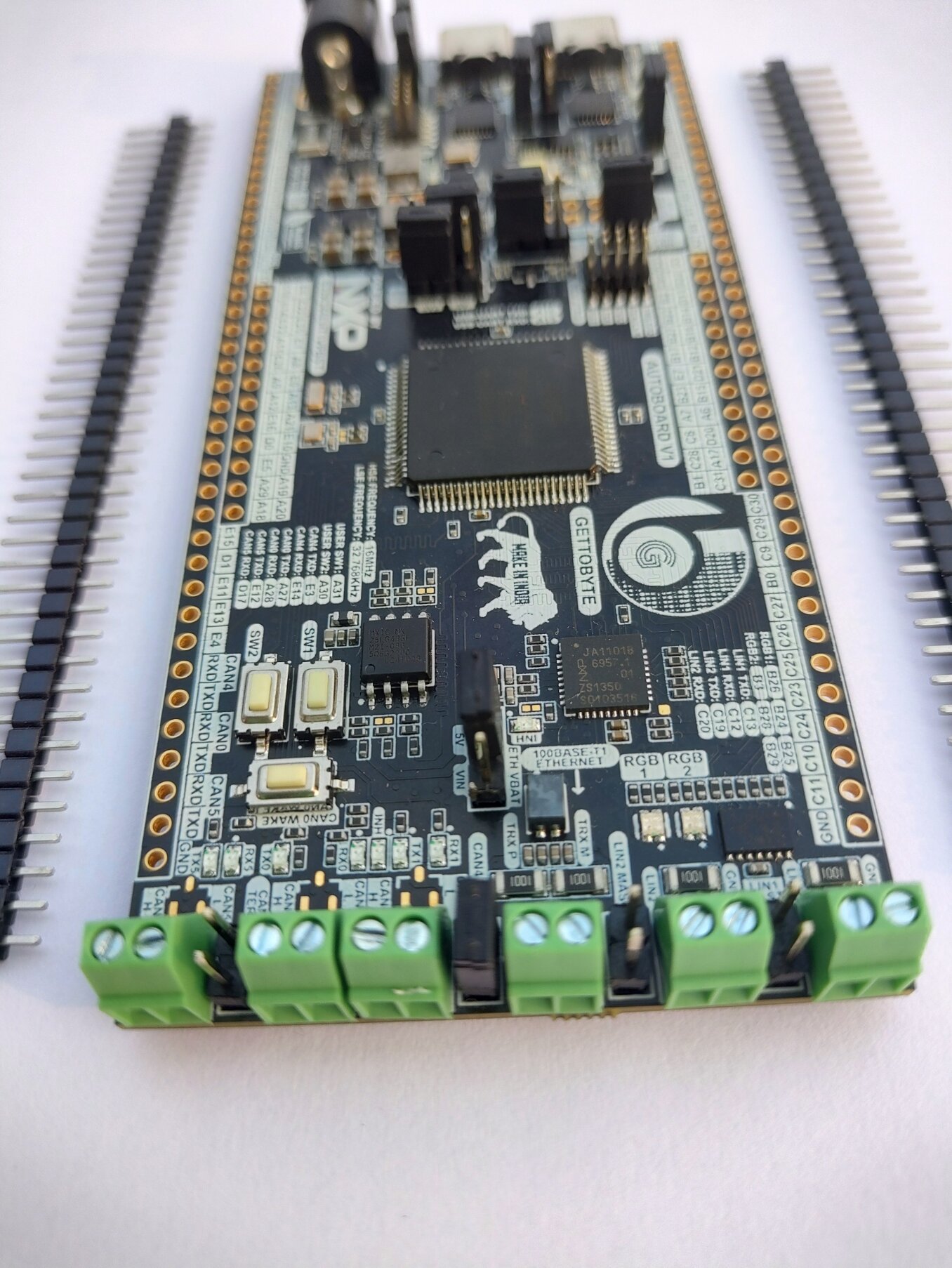

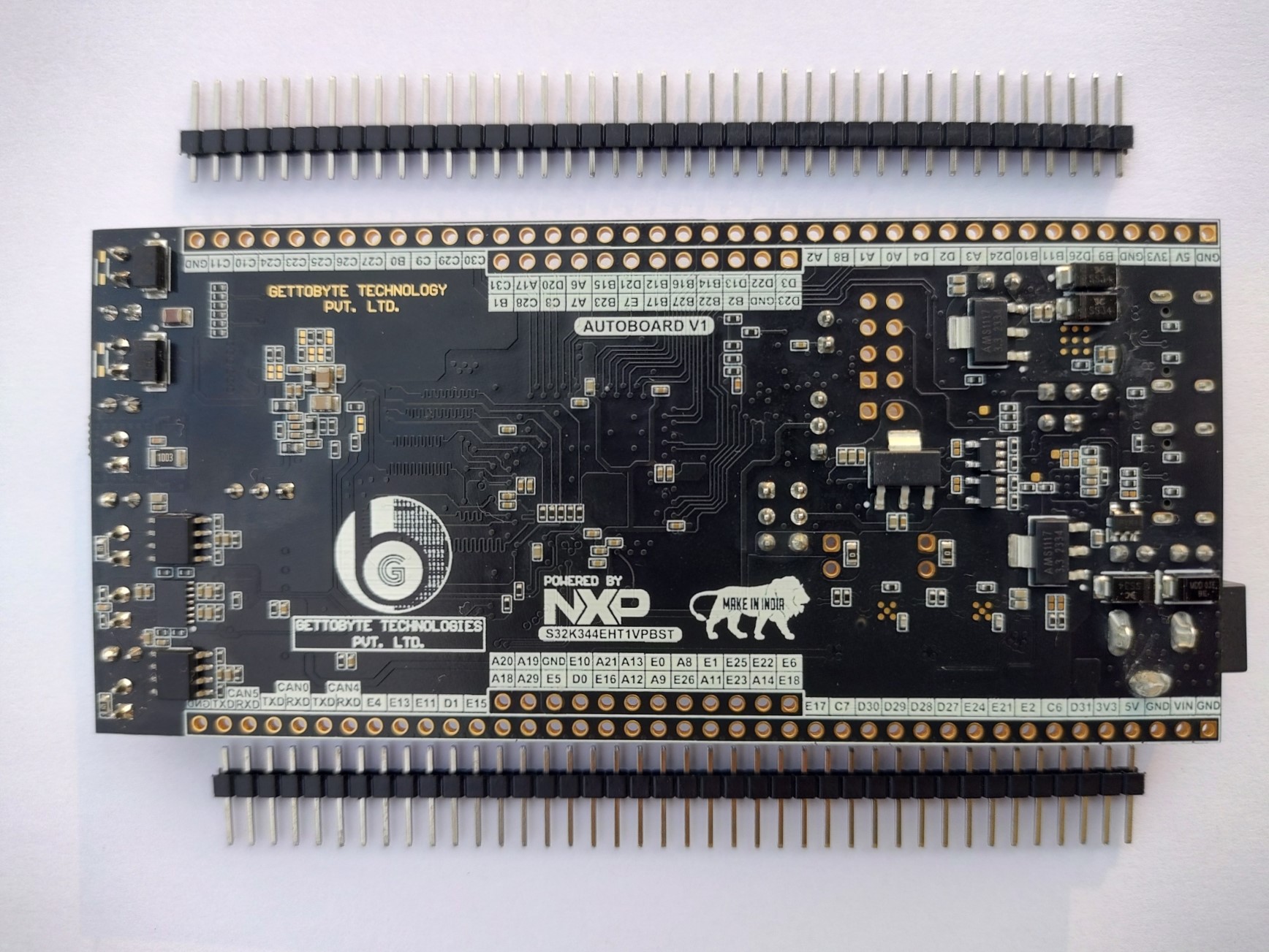

Overview of AutoBoardV1

AutobordV1 is a cutting-edge System on Module (SoM) that is based on the NXP Semiconductors Automotive Microcontroller S32K344. Powered by the ARM Cortex M7 processor-based Microcontroller S32K344, AutoboardV1 is a compact and cost-effective SoM designed specifically for automotive applications by Gettobyte Technologies.

This innovative Embedded Kit can be utilized for prototyping, development, research, corporate training, and academia to create advanced automotive technologies and applications such as ADAS subsystems, Domain/Zonal Control architecture, and ECU gateways in vehicles. Explore AutoboardV1 Usecases section at AutoboardV1 official product page to discover the solutions that can be developed using AutoboardV1.

AutoboardV1 features a Full HSM (Hardware Security Module) based automotive controller, along with automotive peripherals including CAN, LIN, Ethernet, FlexIO, QuadSPI, Advance Timers, and ADC. These features make AutoboardV1 ideal for constructing secure, intelligent powertrain and body control domain automotive electronic devices such as Electric Immobilizers, Domain Controllers, and IoT gateways for automotive applications. Visit our DIY projects section to learn more about the devices that can be created using AutoboardV1.

In addition, AutoboardV1 supports a full Embedded Toolchain consisting of Matlab, Freemaster, S32 Design Studio, and Autosaur MCAL layer to facilitate seamless development and application building. Start your project with ease using the resources provided by Gettobyte Software Material and Content.

For in detail overview on AutoboardV1, refer to its official product page: System On Modules – Get To Byte

Key Features

• NXP S32K344EHT1VPBST chipset
• Wide input voltage range: 6V to 17V
• Input power monitoring via INA219
• USB Type-C for power supply
• Switchable voltage for VDD_HV_A bus (3.3V or 5V)
• Onboard Segger J-Link debugger
• Onboard USB to UART converter (CP2102)
• Three CAN FD transceivers
• One 100Base-T1 Ethernet transceiver
• Two LIN transceivers
• 64Mb QSPI flash memory
• Two user-programmable switches
• Two RGB LEDs
• 16 MHz high-speed external oscillator (HSE) and 32.768 kHz low-speed external oscillator (LSE)
• High-precision (3.3V ± 0.2%) voltage reference for ADC

Board Resources to Use

• AutoBoardV1: Hardware User Manual

Explore Other Automotive Embedded Kits:

1. S32K144 Microcontroller Development Board: ElecronicsV2 – Electronics Infra
2. ProBug Debugger for NXP S32K MCU’s – Electronics Infra
3. JTAG (2×10 2.54mm) to SWD (2×5 1.27mm) Cable Adapter Board – Electronics Infra
4. Programmable ECU for Automotive: SmartWheelsV1 – Electronics Infra

Packet Contents:

1. 1* AutoboardV1
